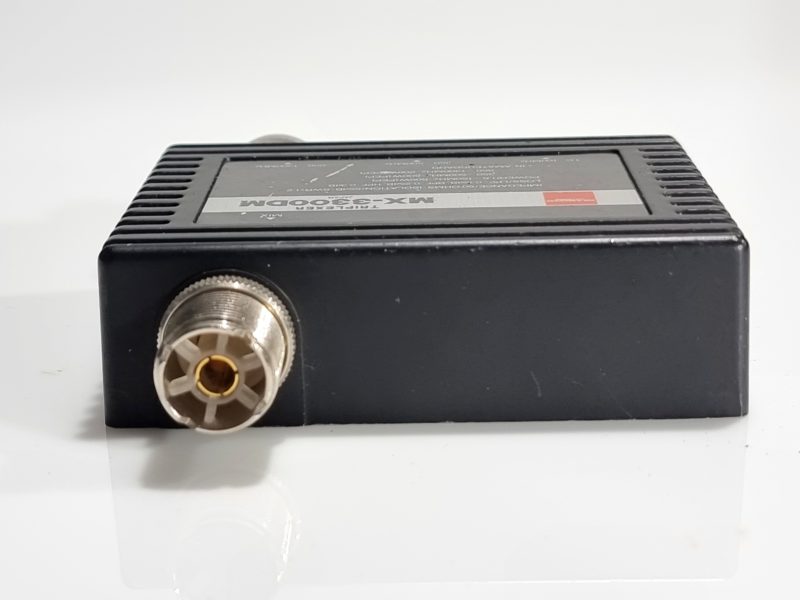

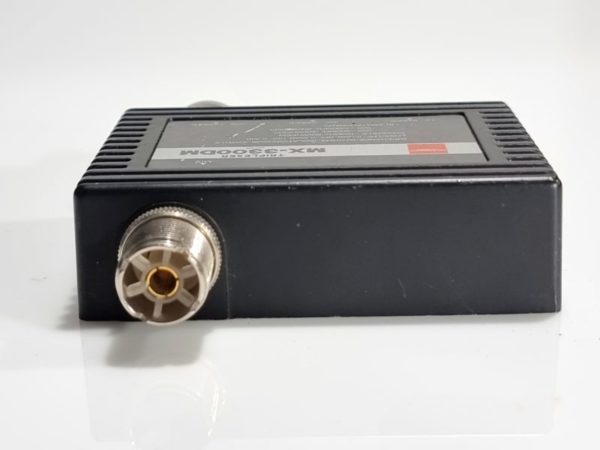

MX-3300DM: Diamond antenna triplexers are used to split or combine HF, VHF, and UHF signals.
These triplexers may be used for combining three transceivers or transceiver connectors with different band ranges onto one coax feed line.
Specifications:
Frequencies 1.6-160MHz / 350-500MHz / 850-1300Mhz
Impedance 50 Ohms
VSWR: Less than 1.2: 1

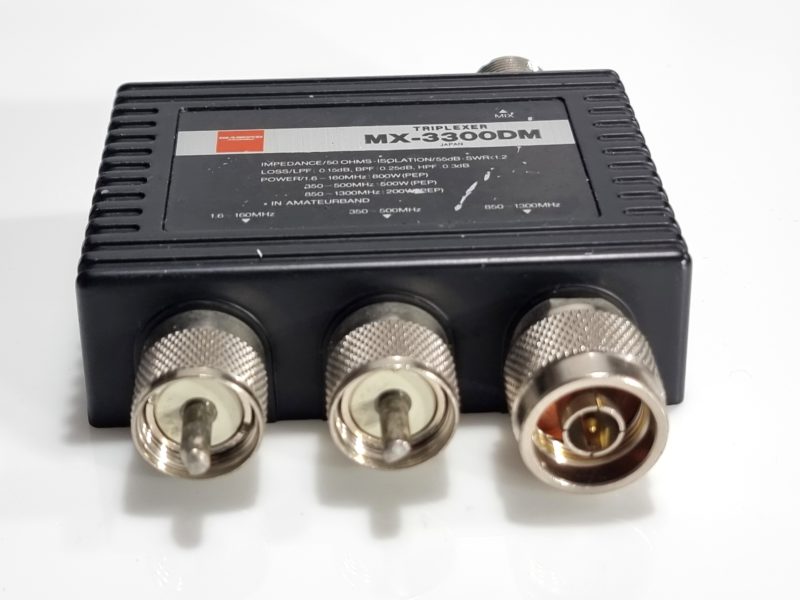

2 x PL-259 Male connector
1 x N Male Connector
1 x SO-239 Female Connector
Power: 1.6-160 MHz: 800 watts (PEP)
Power 350-500 MHz: 500 watts (PEP)
Power 850-1300 MHz: 200 Watts (PEP)
Loss: <0.15 dB (1.6-160) 2.25 dB (140-150) 0.4 dB (850-13000 MHz)
Isolation more than 55 dB
Measures 86 x 25 x 64 mm
