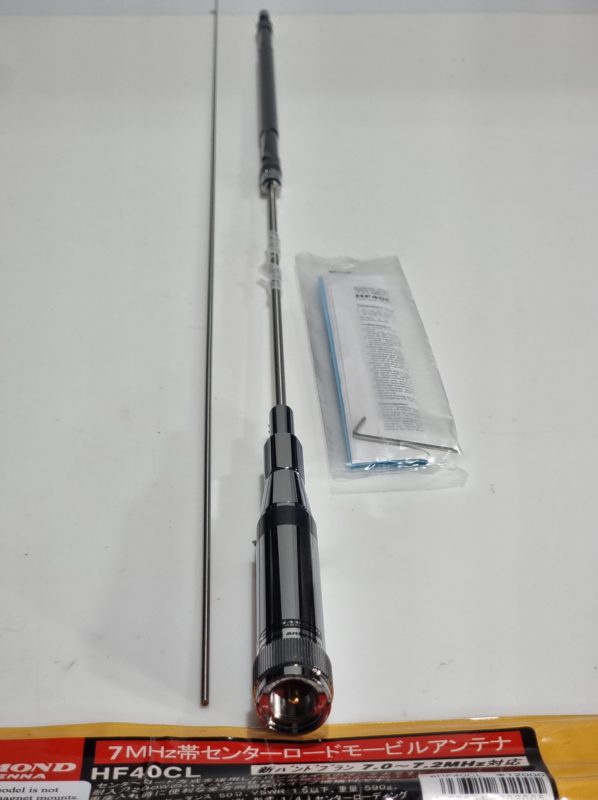

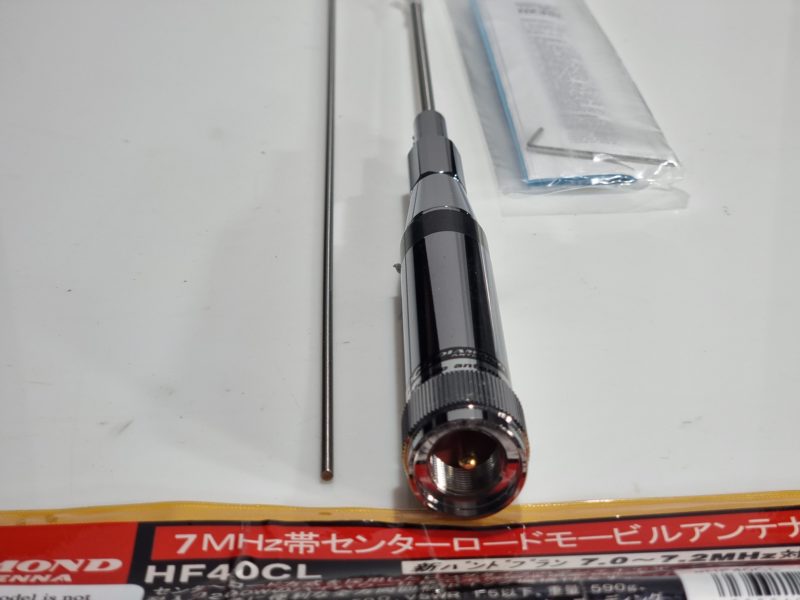

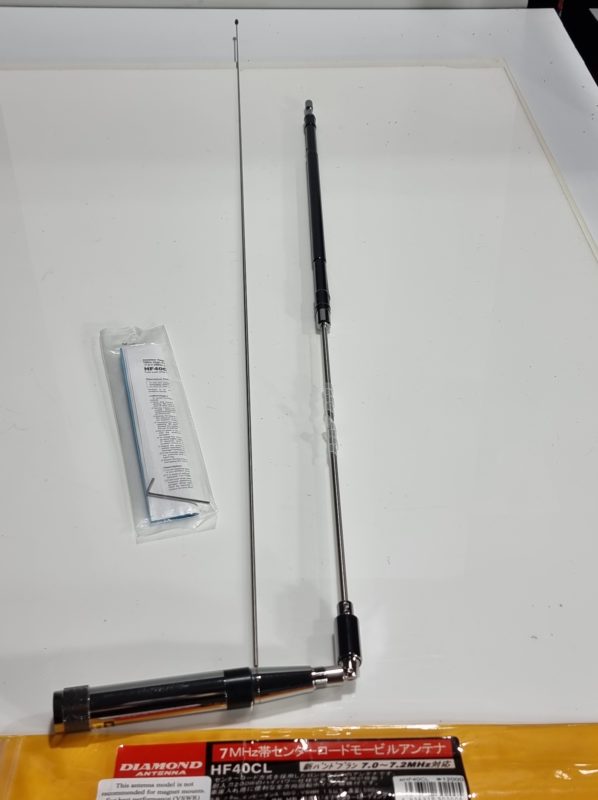

Diamond HF-40CL Mobile Mono Band Antenna



HF-40CL: Functioning as a center-loaded quarter wave on their design frequencies, these mobile HF antennas offer a low SWR across their bands and have power ratings with which you’ll be very pleased. Tough and well constructed, these HF Mono band antennas will give you many years of worry free service.

Frequency: 7MHz band (7.0-7.2MHz)
Max. power rating: 200W (SSB), 70W (FM)
Length: 2.2m
Weight: 590g
Impedance: 50Ω
VSWR: Less than 1.5
Connector: PL-259 Male
Antenna Construction Type: 1/4 wave center loading.
