Description

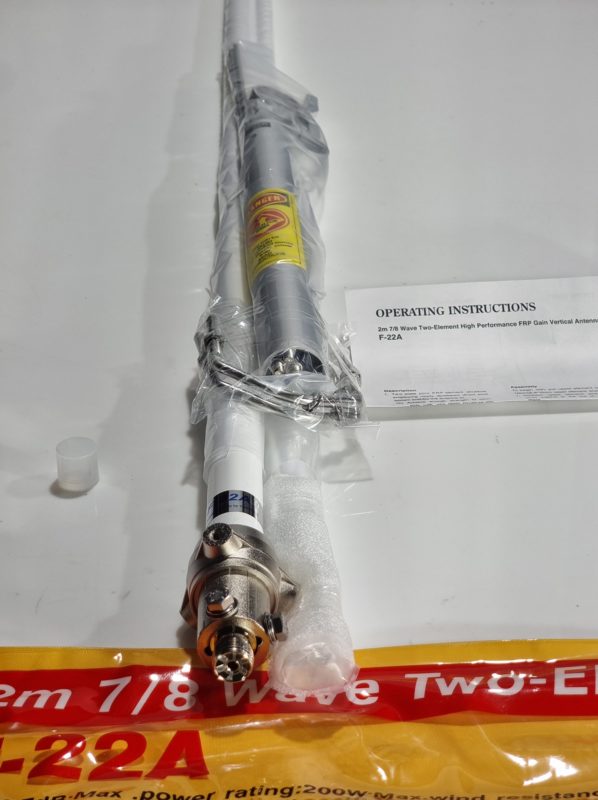

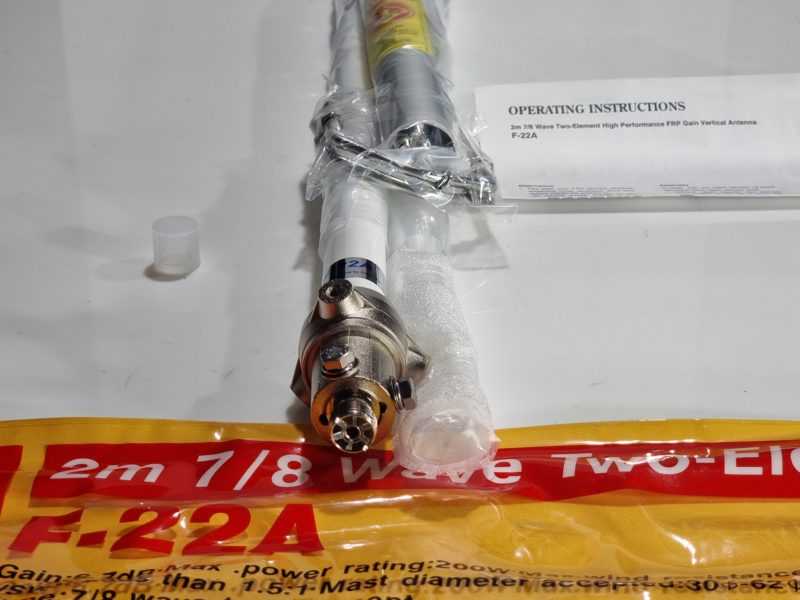

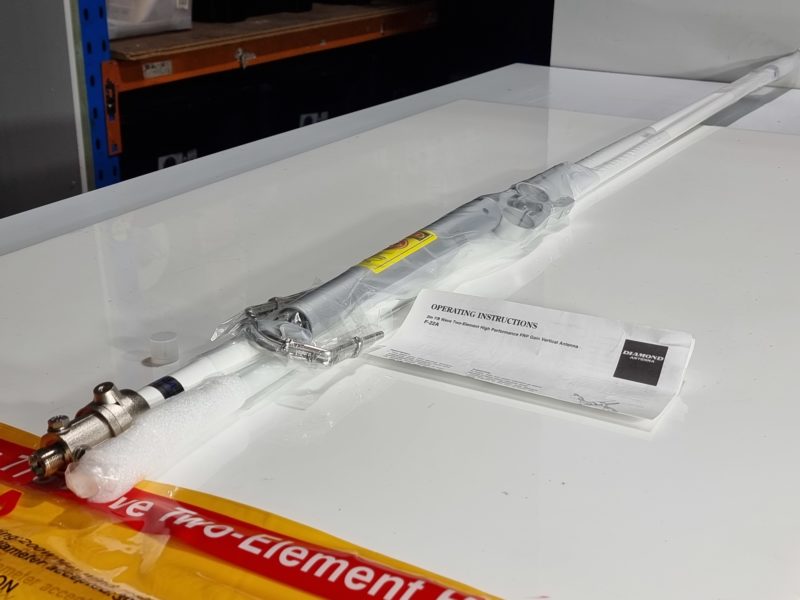

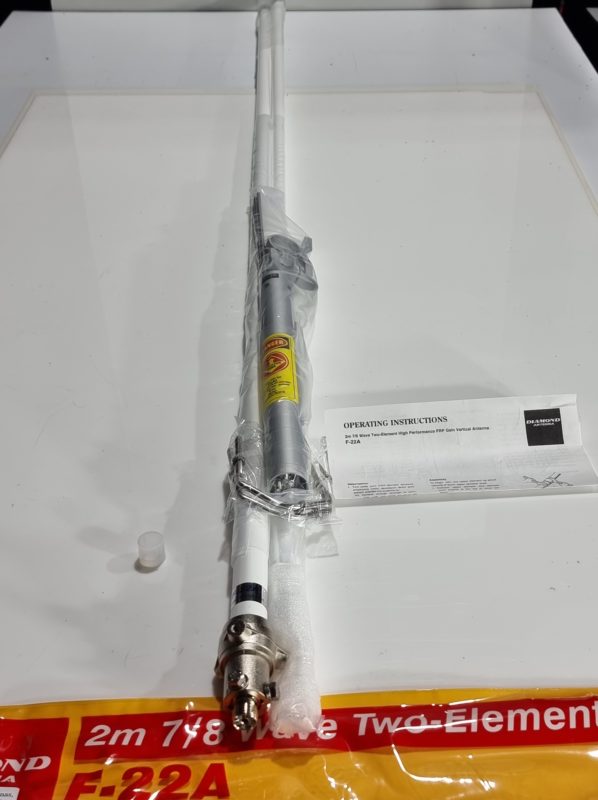

F-22A: Monoband base station antennas have 6.7dBi gain rating and a maximum power rating of 200 watts and are factory adjusted, no tuning is required.
Features:
Overlapping outer shells for added strength.
Strong waterproof joint couplings.
Stainless steel hardware.
Wide band performance.
Factory adjusted, no tuning required.
Highest gain.
High wind rating.
DC grounded.
Wind Rating: 112 MPH
Vertical Antenna Height: 10.5ft.
Fiberglass randomes.
Specifications:
Frequency: 144 to 174 MHz / 2 Meters
Gain: 6.7dB
Max Power: 200 Watt
Length: 320 cm
Weight: 1.3 Kg
Rated Wind Velocity: 50m/sec.
Mast Diameter Accepted: 30-62mm diameter
Connector: MJ / UHF / SO-239
Type: Omnidirectional 2×7/8, FRP Outersheel.
