Description

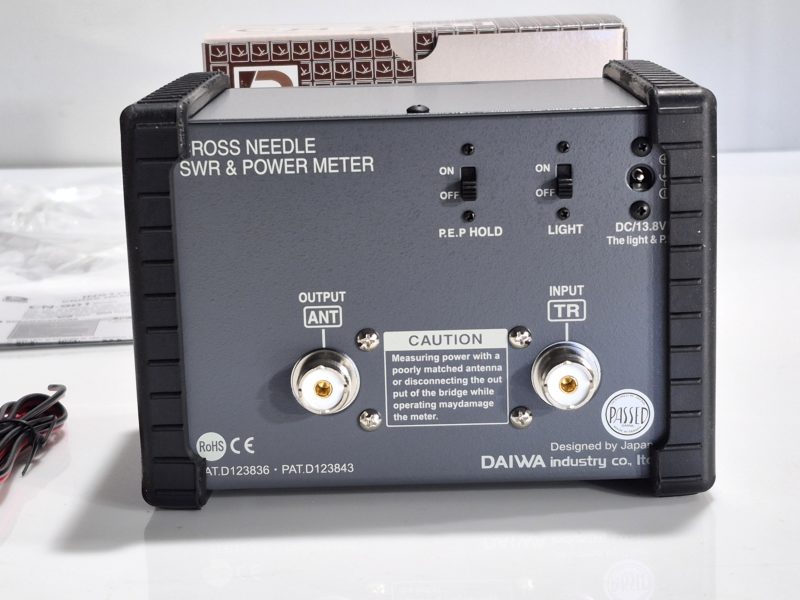

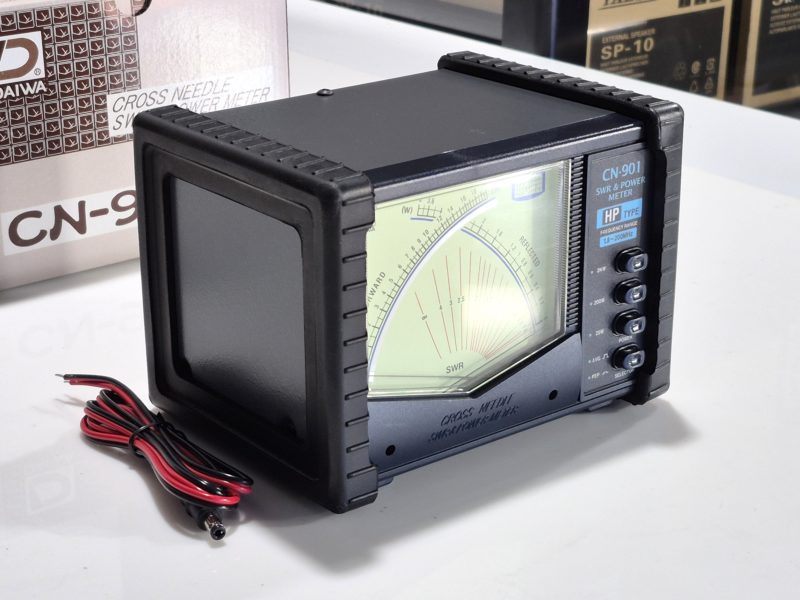

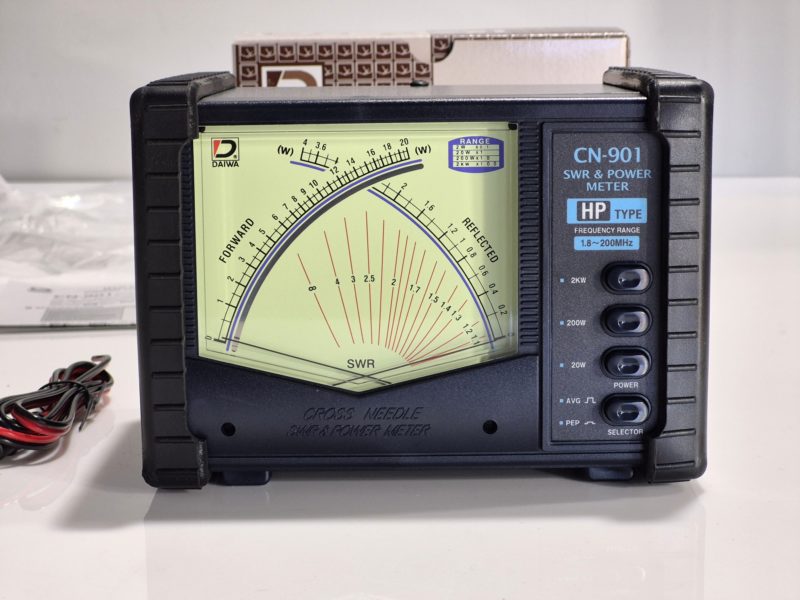

CN-901HP: A professional grade cross needle SWR/power meter that also measures P.E.P. ( Peak Envelope Power ) for SSB operation. An extra large meter allows accurate readings of forwarding & reverse power, with SWR read at the dual meter crossover point. This is the latest version of this meter and is now fitted with 2 x switches on the rear panel to operate 1) PEP function and 2) display illumination..
Specifications:
Frequency: 1.8-200MHz
Power Range Forward: 20/200/2kW
Tolerance: /-10% (at FULL SCALE)
SWR measurement: 1:1~1:8
SWR detection sensitivity: 5W
Impedance: 50 Ohms
Connectors: SO-239
DC Power supply: DC 13.8V(70mA)
Dimensions: 157 (W) x 112 (H) x 116 (D)mm
Weight: 1kg
