Description

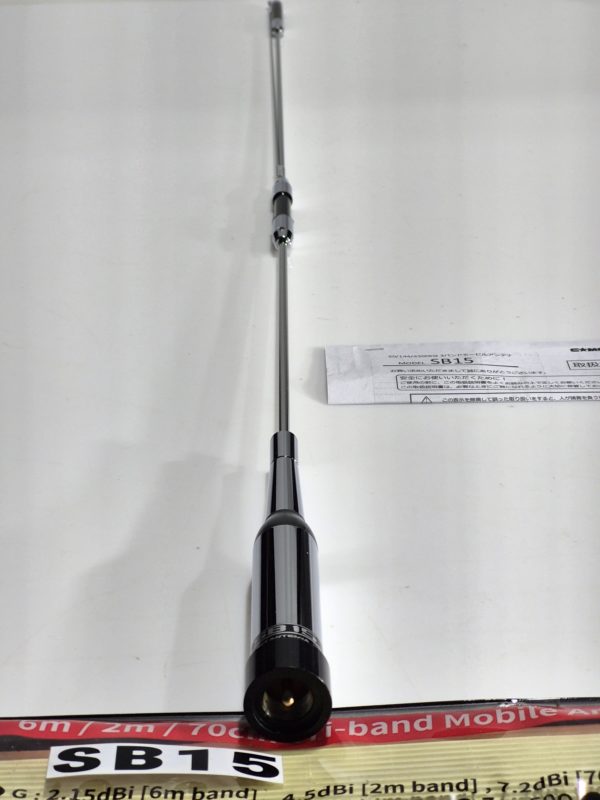

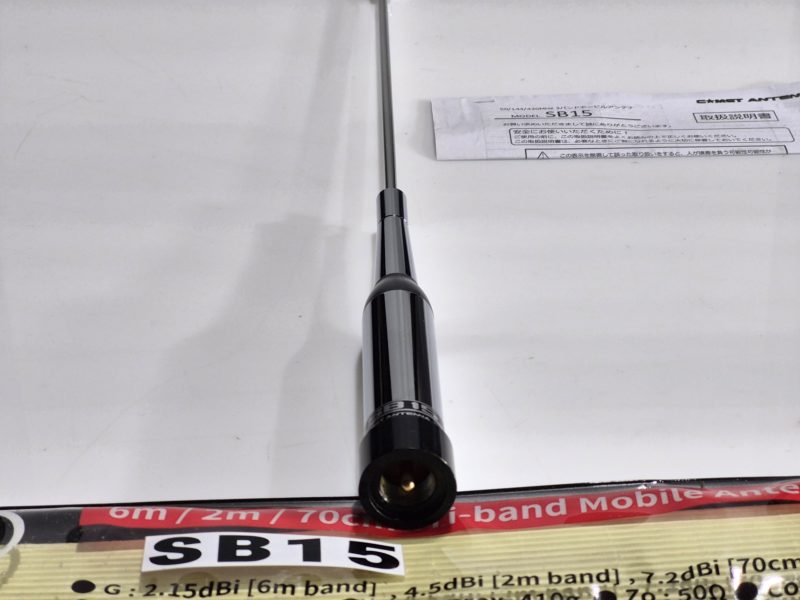

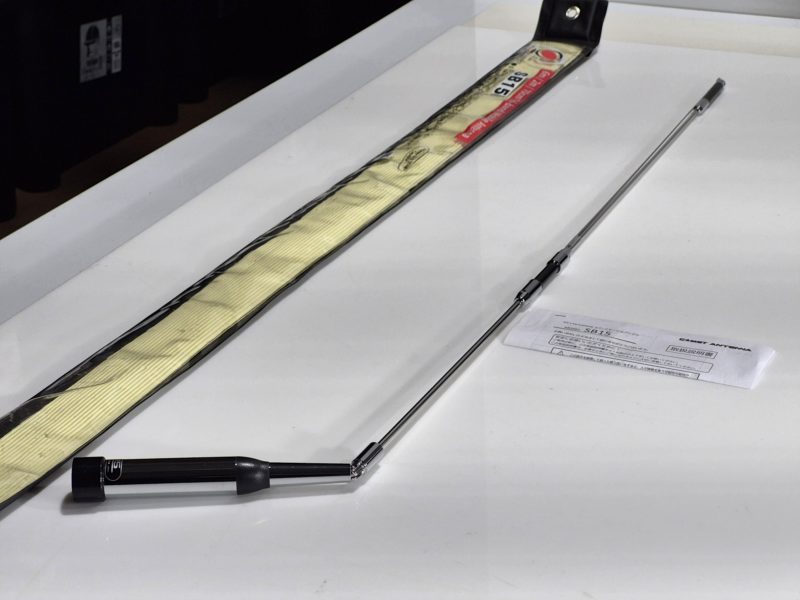

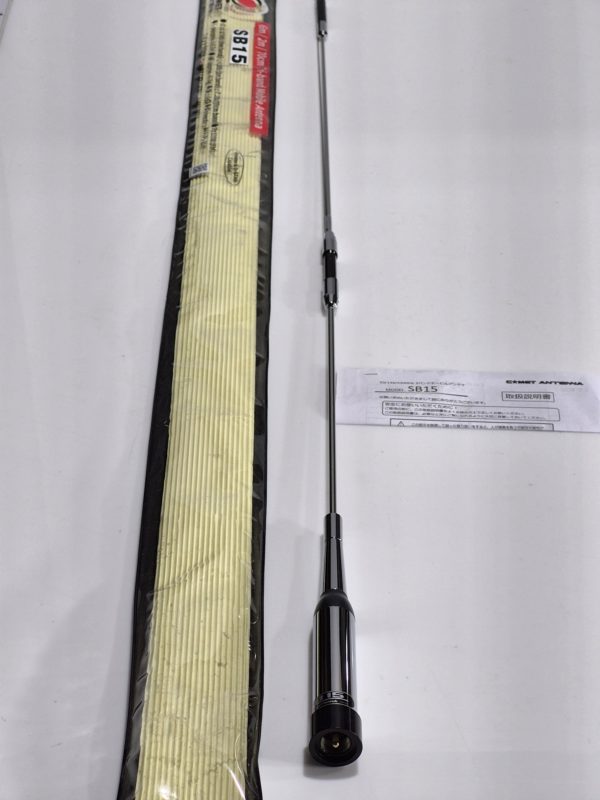

SB-15: A longer tri-band mobile whip, covering the 6m/2m/70Cms bands. Fitted with the ever popular PL-259 base socket, the antenna has useful gain figures of 2.15/4.5/7.2dBi per band. Antenna length is 1.53m, and is finished in high quality materials for a long life. Fitted with tilt over base for easy parking. A great way to work three bands automatically in the car without the inconvenience of fitting a triplexer etc. Please use high quality coaxial cable.
Specifications:
Type: 1/4 wave 50 Mhz, 6/8 144 MHz, 3x 5/8 440 MHz
Foldable whip
Gain: 2.15dBi (50 Mhz), 4.5dBi (144 Mhz) and 7.2dBi (430 Mhz)
Bandwidth: 50-54 Mhz, 144-148 Mhz and 430-450 Mhz
Max power : 120W FM
Impedance: 50 Ohms
ROS: Less than 1.5: 1
Connector: PL259 – UHF male
Color: Chrome
Weight: 410g
