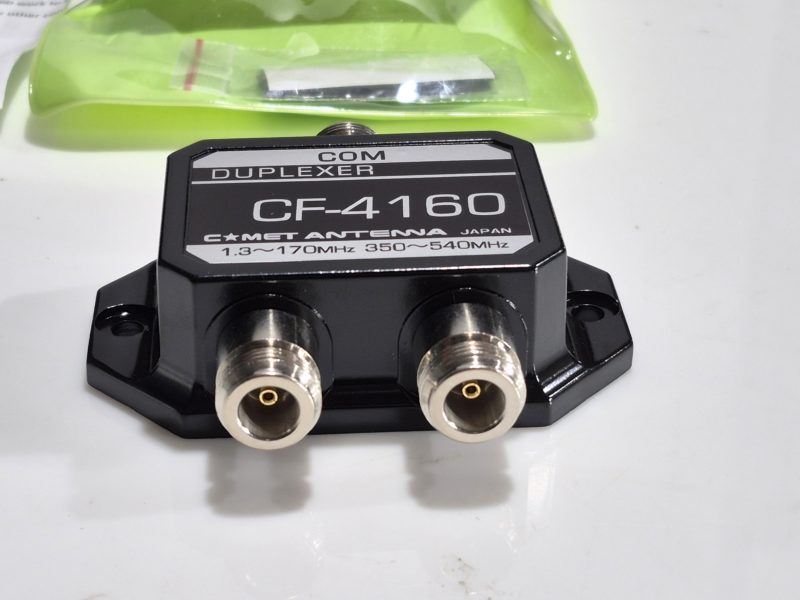

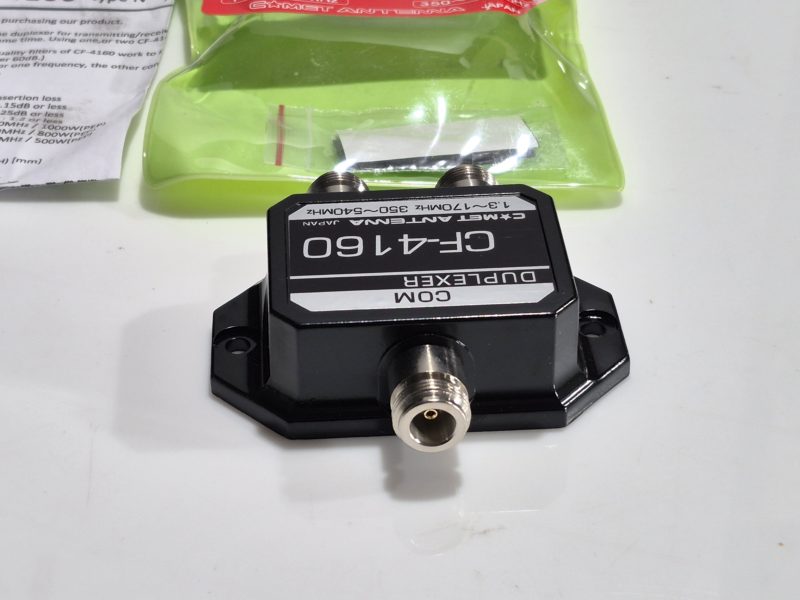

Comet CF-4160N High Power Dual Band Duplexer



CF-4160N: Sometimes referred to as combiners or splitters, these duplexers are basically band pass filters, simultaneously passing RF in both directions through the common connector. The combined high grade filters work for preventing TVI, and the isolation between the two connectors is more than 60dB.
Band Pass Frequency and Insertion loss
1.3-170Mhz / Less than 0.15dB
350-540Mhz / Less than 0.25dB
Impedance: 50 Ohms
VSWR: Less than 1:1.2
Maximum Input Power (PEP) 1.3-60Mhz 1000W
100-170Mhz 800 Watts (PEP)
350-540Mhz 500 Watts (PEP)
Common: N-Female
Low Pass: N-Female
High Pass: N-Female
Isolation: More than 60dB
