Description

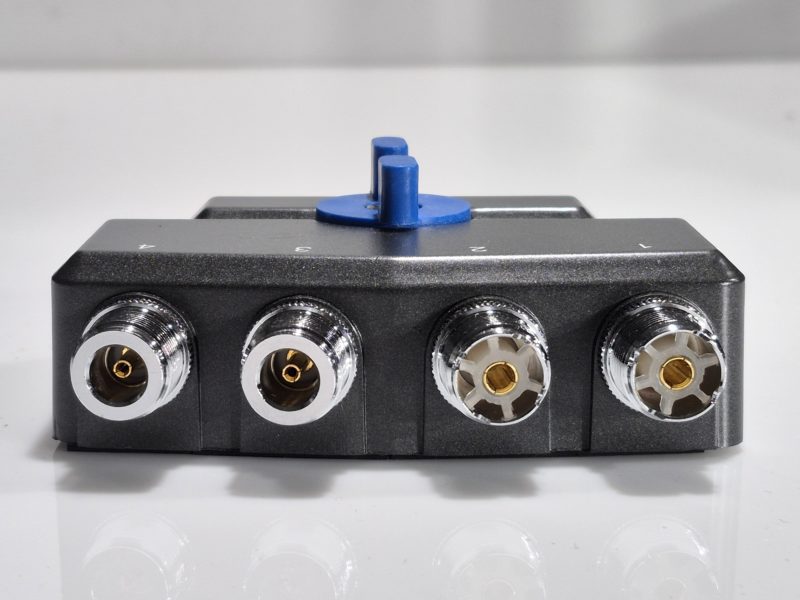

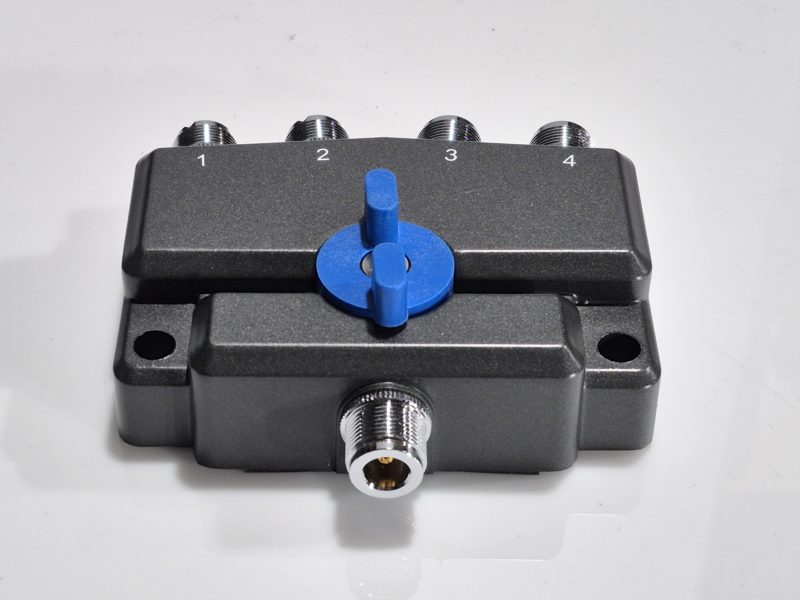

AV-SW-N-2M2N: Low loss 4-Position antenna coaxial switch
Specifications:
Frequency Range: DC-1500MHz
Input Port: N-Type Female
Output Port: 2 x M / 2 x N-Connector Type Female
Power Range:
DC-30MHz: 1.5kW
30MHz-200MHz: 1.0kW
200MHz-500MHz: 500W
500MHz-900MHz: 250W
900MHz-1.5GHz: 150W
VSWR:
DC-500MHz: 1.15
500MHz-900MHz: 1.20
900MHz-1.5GHz: 1.25
