Description

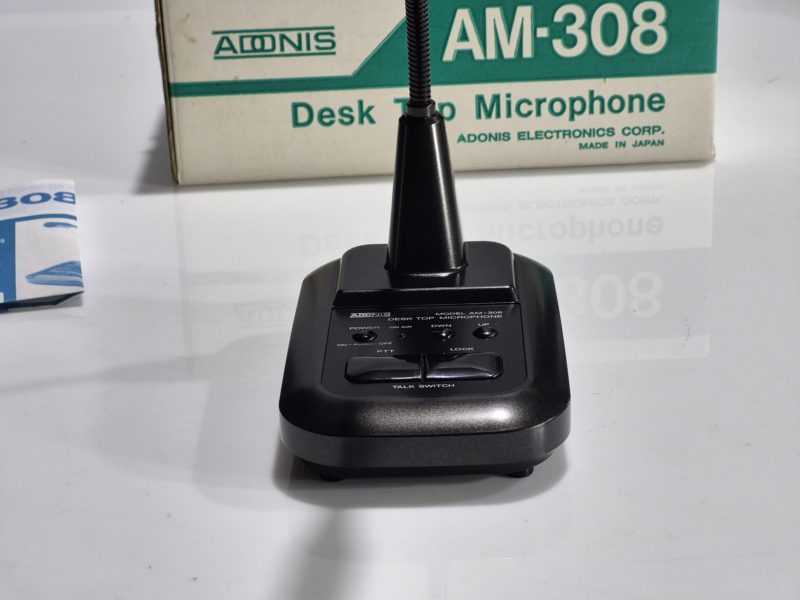

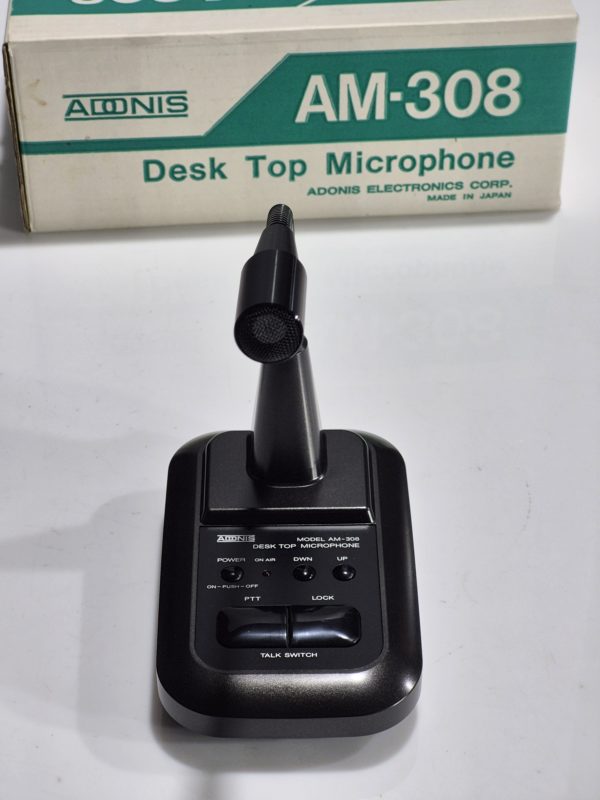

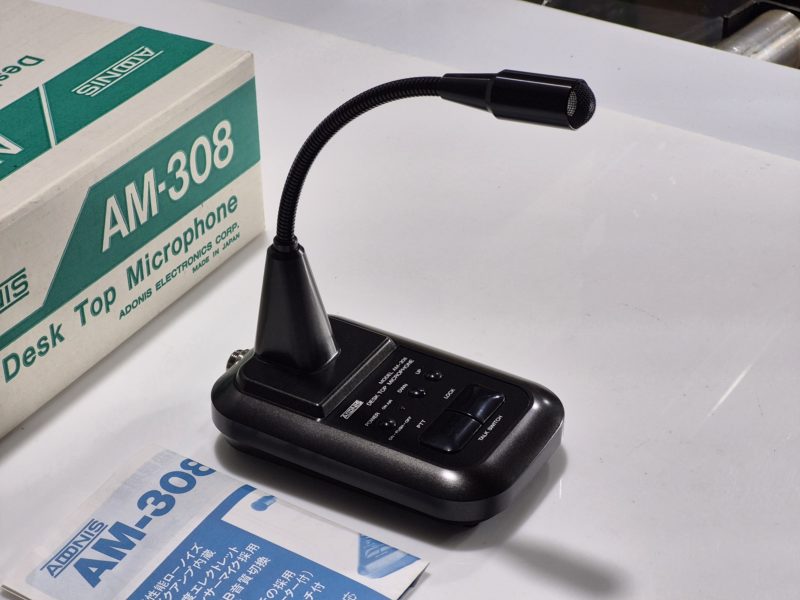

AM-308: The Adonis AM-308 is a high quality electret condenser microphone with built-in preamplifier.
Connectable with most HAM transceivers available in the market by the conversion cables (microphone interconnecting cables) optionally available.
Features:
High-quality low-noise Mic. Amp built-in.
Highly sensitive condenser microphone and flexible gooseneck employed.
Voice quality selector switch for FM/SSB.
Equipped with electronic touch switch for PTT operation( With LED TX indicator ).
Provided with UP and DOWN switches.
Usable with microphone cable equipped with power feeding line ( “D” series cables).
Connectable with every transceiver available in the market by the conversion cables (microphone interconnecting cables ) optionally available.
Specifications:
Microphone : Wide-band Electret Condenser Mic. with IC Built-In.
IC : 1 piece, Transistor : 7 pieces, Diode : 5 pieces
Output Voltage : 0 – 30 mV ( RMS )
Output Impedance : 500 – 100k ohms
Power Voltage : DC 3 V ( UM 3 x 2 pcs. )
“D” series Mic. Connecting Cord : DC 5 V – DC 9 V
Power Consumption : 1.5 mA ( RX ) 2.5 mA ( TX )
Dimensions ( mm ) : 100 (W) x 155 (D) x 310 (H)
Power Voltage :DC 12V – 15V
Weight : 450 g
Accessories:
D6MY = Cable to connect this Micro to a YAESU Transceiver with 6PC6 (RJ12) Connection.
D8Mi = Cable to connect this Micro to a ICOM Transceiver with RJ45 Micro Connection.
D8MK = Cable to connect this Micro to a KENWOOD Transceiver with 8PC8 (RJ45) Micro Connection.
D8MY = Cable to connect this Micro to a YAESU Transceiver with RJ45 Micro Connection.
D8P4S9 = Cable to connect this Micro to a MAGNUM S9 Transceiver with P4 Micro Connection.
D8P6PR1 = Cable to connect this Micro to a PRESIDENT Transceiver with P6 Micro Connection.
D80 = Cable with 8-Pin Connector at one end for this micro and wires to solder a Connector that is needed for a type of transceiver.
D88i = Cable to connect this Micro to a ICOM Transceiver with P8 Micro Connection.
D88K = Cable to connect this Micro to a KENWOOD Transceiver with P8 Micro Connection.
D88Y2 = Cable to connect this Micro to a YAESU Transceiver with 8PC8 (RJ45) Micro Connection.
